Have you ever struggled to meet deadlines on your projects because of unclear task priorities? Managing complex project timelines can feel overwhelming, but there’s a solution.
The Critical Path Method (CPM) is a proven technique to ensure project success by identifying and focusing on tasks that matter the most. Let’s explore this game-changing method and learn how to apply it effectively.
What Is the Critical Path?
The Critical Path refers to the sequence of tasks in a project that determines its total duration. These tasks have no flexibility in their timelines, meaning any delay directly affects the project’s completion date.
By identifying the critical path, project managers can allocate resources more effectively and prioritize the most important activities.
Why Is It Important?
Helps identify bottlenecks.
Ensures efficient resource allocation.
Provides a clear roadmap for timely project delivery.
For example, in a software development project, tasks like coding the backend, integrating APIs, and testing functionalities might fall on the critical path.
What Is the Critical Path Method?
The Critical Path Method (CPM) is a project management technique that maps out all tasks, estimates their durations, and identifies the critical path.
By using CPM, project managers can:
Visualize dependencies: Understand how tasks are interrelated.
Optimize timelines: Shorten project durations by identifying areas for improvement.
Manage risks: Focus on tasks that could derail the project if delayed.

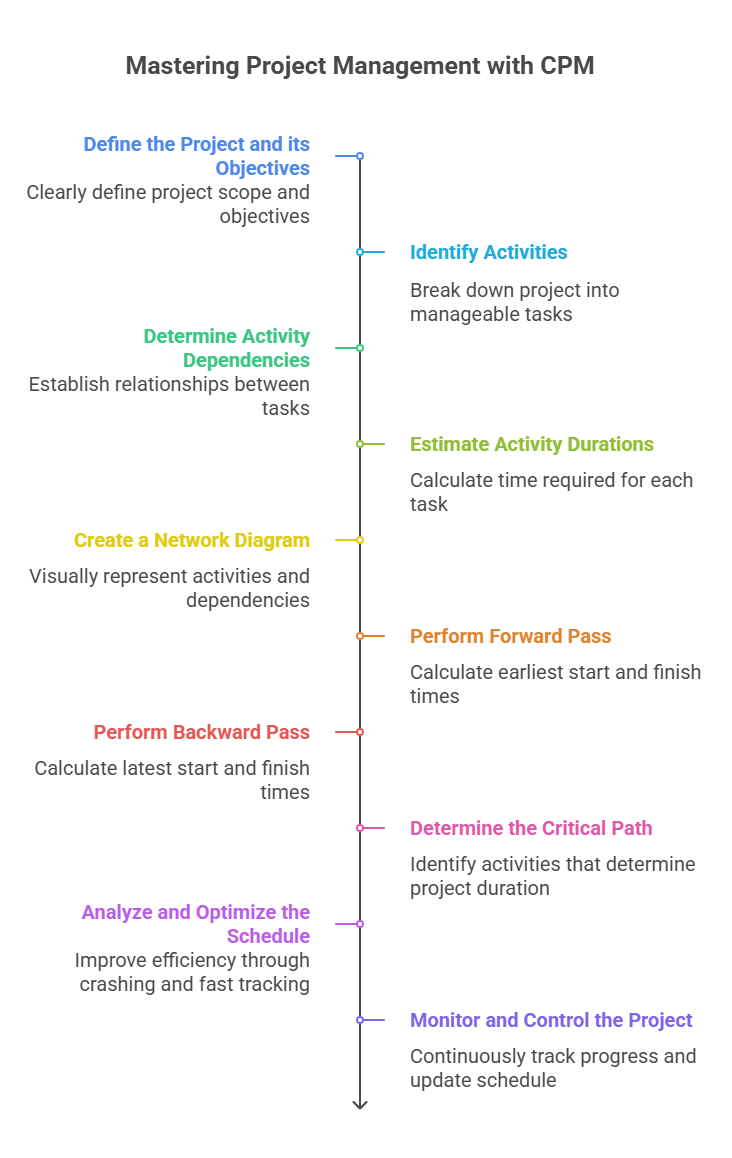

How to Use CPM Step-by-Step
This document provides a step-by-step guide on how to use the Critical Path Method (CPM) for project management. CPM is a technique used to plan and control projects by identifying the critical activities that determine the overall project duration.
By following these steps, you can effectively utilize CPM to manage your projects efficiently.
Step 1: Define the Project and its Objectives
Before diving into the CPM process, clearly define the project's scope, objectives, and deliverables. This involves understanding what needs to be accomplished, the desired outcomes, and the specific criteria for success. A well-defined project scope provides a solid foundation for subsequent steps.
Step 2: Identify Activities
Break down the project into smaller, manageable activities or tasks. Each activity should have a clear start and end point, and should be specific enough to be easily estimated and tracked.
Use a Work Breakdown Structure (WBS) to systematically decompose the project into its constituent activities.
Step 3: Determine Activity Dependencies
Identify the dependencies between activities. This involves determining which activities must be completed before others can begin. Common types of dependencies include:
Finish-to-Start (FS): Activity B cannot start until Activity A is finished.
Start-to-Start (SS): Activity B cannot start until Activity A has started.
Finish-to-Finish (FF): Activity B cannot finish until Activity A has finished.
Start-to-Finish (SF): Activity B cannot finish until Activity A has started (rarely used).
Document these dependencies using a network diagram or a dependency table.
Step 4: Estimate Activity Durations
Estimate the time required to complete each activity. This can be done using various techniques, such as:
Expert Judgment: Consult with subject matter experts to get their estimates.
Historical Data: Use data from similar past projects to estimate durations.
Three-Point Estimating: Use optimistic, pessimistic, and most likely estimates to calculate an expected duration. (PERT formula: (Optimistic + 4 * Most Likely + Pessimistic) / 6)
Ensure that the duration estimates are realistic and account for potential risks and uncertainties.
Step 5: Create a Network Diagram
Construct a network diagram that visually represents the activities and their dependencies. There are two common types of network diagrams:
Activity-on-Node (AON): Activities are represented by nodes (circles or boxes), and dependencies are represented by arrows connecting the nodes.
Activity-on-Arrow (AOA): Activities are represented by arrows, and nodes represent events or milestones.
AON diagrams are generally easier to understand and are more commonly used.
Step 6: Perform Forward Pass
Perform a forward pass through the network diagram to calculate the earliest start (ES) and earliest finish (EF) times for each activity.
ES: The earliest time an activity can start, assuming all its predecessors are completed as early as possible. For the first activity, ES is typically 0.
EF: The earliest time an activity can finish. EF = ES + Duration.
The ES of an activity is the largest EF of its predecessors.
Step 7: Perform Backward Pass
Perform a backward pass through the network diagram to calculate the latest start (LS) and latest finish (LF) times for each activity.
LF: The latest time an activity can finish without delaying the project completion date. For the last activity, LF is typically equal to its EF.
LS: The latest time an activity can start without delaying the project completion date. LS = LF - Duration.
The LF of an activity is the smallest LS of its successors.
Step 8: Determine the Critical Path
Identify the critical path, which is the sequence of activities that determines the overall project duration. Activities on the critical path have zero slack or float.
Slack (or Float): The amount of time an activity can be delayed without delaying the project completion date. Slack = LF - EF or LS - ES.
The critical path is the longest path through the network diagram. Any delay in an activity on the critical path will directly impact the project completion date.
Step 9: Analyze and Optimize the Schedule
Analyze the CPM results to identify potential areas for improvement. Consider the following:
Crashing: Shortening the duration of critical path activities by allocating more resources or using more efficient methods. This often involves increasing costs.
Fast Tracking: Performing activities in parallel that were originally planned to be sequential. This can increase risk.
Resource Leveling: Adjusting the schedule to smooth out resource utilization and avoid resource bottlenecks.
Step 10: Monitor and Control the Project
Continuously monitor the project's progress and compare it to the planned schedule. Track actual start and finish times, and update the CPM network diagram as needed.
If deviations occur, take corrective actions to keep the project on track. Regularly review and update the CPM schedule to reflect changes in the project environment.
Benefits of Using the Critical Path Method in Project Management
The CPM offers numerous advantages for project teams, including:
1. Improved Planning and Scheduling
CPM provides a structured approach to project planning. By outlining every task and its dependencies, managers can create a realistic timeline that accounts for potential delays.
2. Better Resource Allocation
By identifying the critical path, teams can focus their resources—both human and financial—on tasks that directly impact the project’s timeline.
3. Risk Management
CPM highlights tasks that are most susceptible to delays. This allows managers to anticipate potential risks and develop mitigation strategies in advance.
4. Enhanced Team Collaboration
A clearly defined critical path fosters better communication among team members by clarifying responsibilities and priorities.
5. Timely Project Delivery
With CPM, you can monitor progress against the critical path, ensuring that the project stays on track and meets deadlines.
When to Use the Critical Path Method
CPM is particularly useful in the following scenarios:
1. Large, Complex Projects
For projects with multiple tasks and dependencies, CPM helps break down complexity into manageable parts.
2. Tight Deadlines
When time is a critical factor, CPM ensures that resources are focused on tasks that directly impact the schedule.
3. Resource-Intensive Projects
Projects with limited resources benefit from CPM as it identifies where to allocate resources most effectively.
4. High-Risk Projects
If delays could have significant repercussions, CPM helps minimize risks by prioritizing critical tasks.
Key Components of the Critical Path Method
The CPM consists of several essential elements:
1. Tasks and Activities
Each project consists of tasks that need to be completed. These tasks are broken down into smaller, actionable steps.
2. Dependencies
Some tasks cannot start until others are completed. These relationships are known as dependencies.
3. Duration
Each task has an estimated duration. Accurate time estimates are crucial for effective CPM.
4. Milestones
Milestones mark significant achievements within the project timeline, such as the completion of a major phase.
5. Float (Slack)
Float refers to the amount of time a task can be delayed without affecting the project’s end date. Tasks on the critical path have zero float.
How To Calculate the Critical Path in Project Management
Calculating the critical path involves these steps:
Step 1: List All Tasks
Create a comprehensive list of all tasks required to complete the project. Break down larger tasks into smaller activities for better accuracy.
Step 2: Identify Dependencies
Determine which tasks depend on the completion of others. For example, you cannot paint a wall before building it.
Step 3: Estimate Durations
Assign realistic time estimates to each task based on experience or expert input.
Step 4: Create a Network Diagram
Visualize tasks and dependencies using a network diagram. This step helps you see how tasks are interconnected.
Step 5: Identify the Critical Path
Calculate the total duration of each path in the diagram and identify the one with the longest duration. This is your critical path.
Example of Critical Path Analysis in ClickUp
ClickUp simplifies critical path analysis with its intuitive features. Here’s how you can use ClickUp to identify and manage the critical path:
1. Task Visualization
ClickUp’s Gantt charts allow you to visualize tasks, dependencies, and timelines in one place.
2. Time Estimation
Use ClickUp’s time-tracking features to estimate task durations accurately.
3. Dependency Management
Define task relationships with ClickUp’s drag-and-drop functionality.
4. Progress Monitoring
Track progress in real time and adjust the critical path as needed.
For more details, check out Breaking Down the Critical Path Method in Project Management (+Templates).
Projects Best Suited for the Critical Path Method (CPM)
1. Construction Projects
Complex construction projects with interdependent tasks greatly benefit from CPM.
2. Software Development
For projects involving coding, testing, and deployment, CPM ensures timely delivery.
3. Event Planning
From scheduling vendors to setting up venues, CPM helps manage tight timelines.
4. Manufacturing
CPM optimizes production schedules by identifying bottlenecks in the process.
5. Marketing Campaigns
Multi-channel campaigns with overlapping tasks can be streamlined using CPM.
Navigate Project Timelines Efficiently With ClickUp
ClickUp offers a robust platform for managing projects with the critical path method. Its features, such as Gantt charts, time tracking, and real-time progress updates, make it an ideal tool for teams aiming for project success.
Explore 10 Free Critical Path Templates to get started.
Frequently Asked Questions (FAQ)
What is the main purpose of the critical path method?
The CPM helps project managers identify and focus on tasks that directly impact the project’s completion date.
Can CPM be used for all types of projects?
While CPM is versatile, it’s most effective for projects with clear task dependencies and timelines.
How does ClickUp simplify CPM?
ClickUp offers tools like Gantt charts, task dependencies, and time-tracking features, making CPM implementation seamless.
Conclusion
The Critical Path Method is a powerful tool for managing complex projects and ensuring timely delivery. By identifying the critical path, allocating resources effectively, and monitoring progress, teams can navigate even the most challenging timelines. Whether you’re managing construction projects, software development, or marketing campaigns, CPM provides a structured approach to success.
